Migrating AWS IAM Identity Center from Okta to Teleport

Report an issue with this page

This guide describes how to introduce Teleport into an existing Okta-managed AWS IAM Identity Center configuration. It specifically describes two scenarios: one where Teleport shares control of your Identity Center managed resources in conjunction with Okta, and another where Teleport replaces Okta as the Identity Center SSO Provider and user provisioner

How it works​

You can introduce Teleport into an existing Okta-managed AWS IAM Identity Center instance in one of two ways:

  • Partial hand-off (also called Hybrid mode): Keep Okta as the User provisioner and SSO provider for the AWS IAM Identity Center instance, but delegate account assignment and (some) Identity Center group provisioning to Teleport, or
  • Full hand-off: Fully transfer the control of AWS IAM Identity Center from Okta to Teleport, including user provisioning, group provisioning, account assignment provisioning and SAML SSO.

For simplicity, we recommend full hand-off.

In both cases, the AWS IAM Identity Center SCIM bearer token must be shared with Teleport, as Teleport uses SCIM even in Partial hand-off mode to provision Identity Center groups and manage Group membership.

Prerequisites​

  • A Teleport cluster.
  • An AWS role configured as per the AWS IAM Identity Center guide for the integration to use.
  • AWS credentials configured for the Teleport Auth Service to pick up and use (e.g. as environment vars, system profiles, etc).
  • An Okta API token, with the following privileges:
    • View users and their details.
    • View groups and their details.
    • View applications and their details.
  • The AWS IAM Identity Center ARN, AWS region, SCIM base address and SCIM bearer token.

Partial hand-off (Hybrid setup)​

We will start by setting up Teleport, Okta and Identity Center in a Partial hand-off configuration, covering

  • integrating Okta and Teleport, ensuring that all users Okta users provisioned into Identity Center are also provisioned into Teleport,
  • configuring Teleport to manage groups and account assignments in Identity Center
  • setting up Teleport group import rules so that Identity Center groups managed by Okta are not overridden by Teleport.

Once this initial setup is complete you can either run in Partial hand-off mode indefinitely, or use the Partial hand-off configuration as a stepping stone towards a full hand-off integration.

Teleport will not disable locked or deactivated Teleport users in AWS

Given the nature of a Partial hand-off configuration it is trivial for the external IdP (in this case, Okta) to re-activate an AWS user deactivated by Teleport, without Teleport being aware of it.

To avoid confusion, when in a Partial hand-off configuration Teleport assumes that all user-related provisioning will be managed by the external IdP, including deactivating and re-activating users as necessary. Teleport will not propagate Teleport user locks to Identity Center users, nor strip an Identity Center user's account assignments or group memberships in response to a Teleport lock.

To prevent a deactivated user accessing AWS resources, they need to be forbidden from logging in to AWS via the external IdP SSO provider.

Note

If you already have an Okta integration set up in Teleport, can ensure that users and groups that exist in AWS IAM Identity Center are already synced to Teleport, and want Teleport to fully control AWS IAM Identity Center, you can switch to Teleport right away, without the need for migration.

See Getting Started with AWS IAM Identity Center integration.

Starting Point​

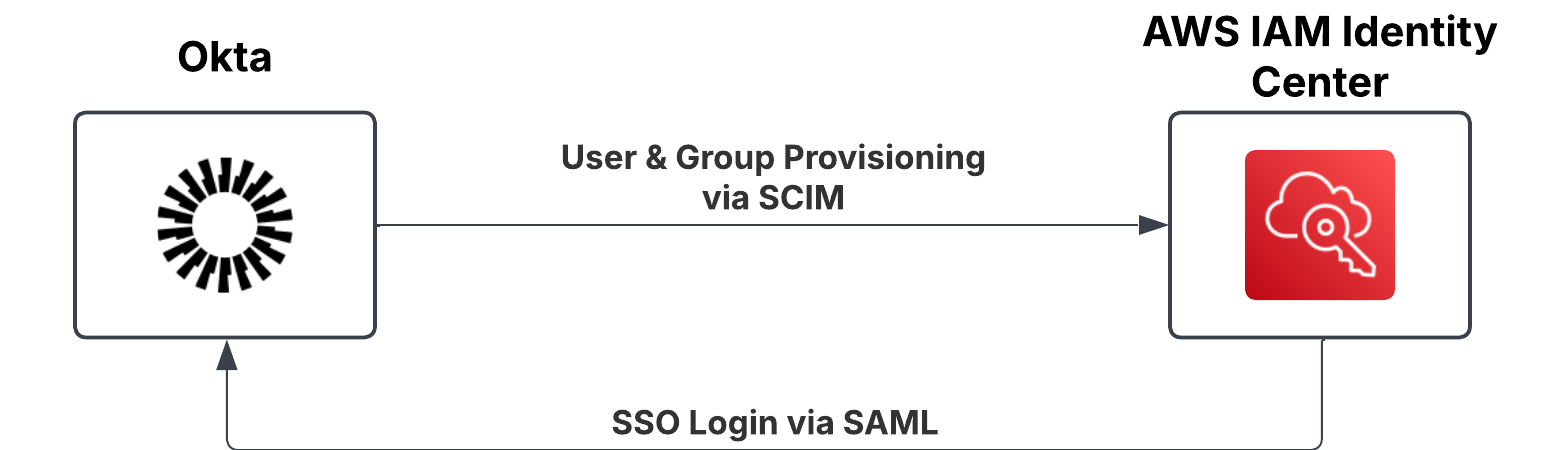

This is our starting configuration: Okta as sole Identity Source for Identity Center.

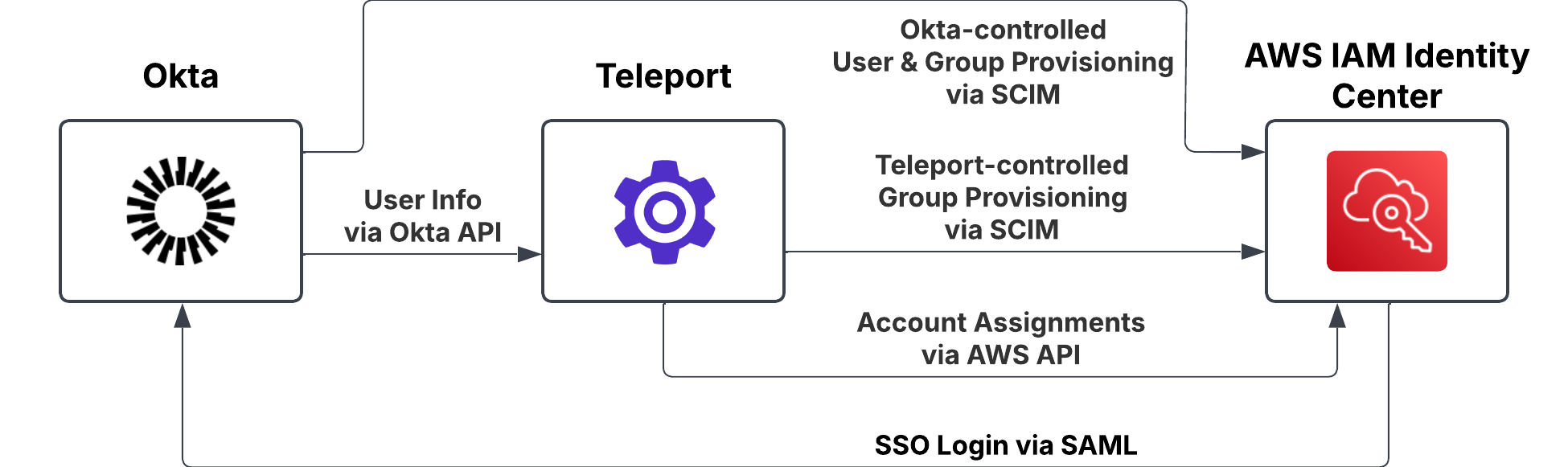

Destination​

At this point Okta remains in control of User provisioning and SSO, while Teleport controls Identity Center groups and account assignments.

Specifically:

  • Okta provides SSO login for Identity Center.
  • Okta manages a subset of the Identity Center group membership (selected via Push Groups in Okta).
  • Okta controls user provisioning via SCIM.
  • Teleport manages a second subset of Identity Center groups (selected via group filters during plugin installation).
  • Teleport controls Identity Center group account assignments for the Identity Center groups under its control.
  • Teleport controls direct Identity Center user account assignments for the Identity Center users under its control.

Step 1/6. Install Okta SAML connector​

Install Okta SAML connector into Teleport as per the Teleport Okta as an SSO provider guide.

note

For the integration to function properly, both AWS IAM Identity Center and Teleport must view the same user set which can be achieved by using the same Okta SAML application for both Identity Center and Teleport SAML connector.

If this is not possible, the most flexible approach we've found is having an an Okta Group for those users that should have Identity Center access, and then assigning both the Okta Identity Center App and the Okta SAML App used for Teleport SAML connector to that group. This ensures that the same user set is visible across both applications.

You will need the Teleport SAML Connector Name and Okta SAML App ID in the next step.

Step 2/6. Install the Teleport Okta integration​

We will be using a very limited subset of the Teleport Okta integration in this deployment, disabling all features except periodic user synchronization. This configuration is not currently supported by the normal installation UI, so we will have to use tctl to install it:

$ tctl plugins install okta \
    --org ${OKTA_ORG_URL} \
    --saml-connector ${TELEPORT_SAML_CONNECTOR_NAME} \
    --app-id ${OKTA_SAML_APP_ID} \
    --api-token ${OKTA_API_TOKEN} \
    --no-scim \
    --no-accesslist-sync \
    --no-appgroup-sync

This will install the Okta integration and start the user sync service with a configuration that:

  • Imports Okta users assigned to the Okta App ${OKTA_SAML_APP_ID}, and keeps them synced with the upstream Okta organization.
  • Does not expose a SCIM service.
  • Does not attempt to sync or manage any other resources from Okta.

You can monitor the state of the Okta integration in the Teleport Integrations UI.

Step 3/6. Wait for user sync​

To make sure everything is working, wait until the first Okta to Teleport user sync has occurred. You can verify this by either

  • Refreshing the user page and finding your Okta users, or
  • Checking the Okta integration status page.

Once your Okta users are imported into Teleport, you can progress to the next step.

Step 4/6. Install the Teleport AWS IAM Identity Center integration​

Again, we need to install the plugin using tctl.

$ tctl plugins install awsic \
    --instance-arn ${IDENTITY_CENTER_INSTANCE_ARN} \
    --instance-region ${IDENTITY_CENTER_INSTANCE_REGION} \
    --use-system-credentials \
    --assume-role-arn ${AWS_IAM_ROLE_ARN} \
    --scim-url ${IDENTITY_CENTER_SCIM_BASE_URL} \
    --scim-token ${IDENTITY_CENTER_SCIM_BEARER_TOKEN} \
    --access-list-default-owner ${TELEPORT_ACCESS_LIST_DEFAULT_OWNER} \
    --user-origin okta \
    --account-name ${ACCOUNT_NAME_ALLOW_FILTER} \
    --group-name ${GROUP_NAME_ALLOW_FILTER}

This will install the Teleport AWS IAM Identity Center integration with a Teleport configuration that:

  • Controls the AWS IAM Identity Center instance indicated by --instance-arn.
  • Uses the system AWS credentials to authenticate with AWS (from --use-system-credentials) and assumes the IAM role indicated by --assume-role-arn.
  • Manages account assignments all AWS accounts that match the ${ACCOUNT_NAME_ALLOW_FILTER}.
  • Provisions all users imported from Okta into AWS IAM Identity Center (from the --user-origin okta flag).
  • Only imports all groups matching ${GROUP_NAME_ALLOW_FILTER} into Teleport as Access Lists, with ${TELEPORT_ACCESS_LIST_DEFAULT_OWNER} as the owner.
note

Note that the tctl installer currently only supports installations using system-level AWS credentials with --use-system-credentials.

Using system-level credential is also the recommended way to provide AWS credential when configuring integration in the Teleport Enterprise self-hosted deployment.

You can change the AWS account, group and user filters later by following the instructions in the Extending the Integration section below.

During the installation process, Teleport will import all of the Identity Center groups that match its allow list (or all of them, if no allow list is defined) and create matching Access Lists, preserving the group membership and account assignments.

For more installation options, such as disabling the creation of Teleport Roles for each Account Assignments, see the Advanced Options guide.

warning

Individual user account assignments will not be preserved during import. You will need to ensure these are preserved manually, or converted to group assignments prior to installation.

Group import control​

The Group import allow list is controlled by the --group-name option. You can specify multiple filters and a Group will be imported if matches any of the supplied filters. Filters can be either literal names, globbed names or Go compatible regular expressions. To treat a filter as a regular expression, enclose it in a leading ^ and trailing $.

Example filters:

  • administrators: The literal "administrators" group
  • site-*: Any group with the prefix site-
  • ^(?:[^a]|a[^w]|aw[^s]|aws[^\-]).*$: Any group that does not have the prefix aws-

Ensure that there is no overlap between the groups imported to Teleport and the groups you want Okta to maintain control over.

warning

Avoid creating an Access List with the same name as a Push Group managed by Okta. Teleport will attempt to adopt the group, and may change the group membership. Deleting the Teleport Access List and forcing a re-push from Okta should restore access.

User provisioning control​

Your Teleport cluster may have a mix of local Teleport users (e.g. a local Admin user) and users imported from Okta. By default, Teleport will try to provision all Teleport users into Identity Center. You can control which users are provisioned by the Identity Center integration with the --user-origin and --user-filter arguments. In the example above, the --user-origin okta will restrict Teleport to only provisioning users that are synced from Okta, and excluding all local Teleport users.

AWS account import control​

By default, Teleport will take control of account assignments for all AWS Accounts managed by Identity Center. You can create an allow-list of AWS Accounts to import with the --account-name and --account-id install options.

The --account-name filters work like the --group-name filters above. The --account-id filters specify a literal AWS Account ID.

Teleport will not create or delete account assignments on AWS accounts outside of its allow-list.

Step 5/6. Migrate AWS account​

We have now configured the Teleport Identity Center integration in partial hand-off mode, and ready to migrate account assignments from Okta-managed groups into new Teleport-managed Access Lists. To migrate groups, create a new Access List in Teleport (taking care not to use the same name as the existing Okta-managed Group) and create the appropriate memberships and account assignments.

Account assignments can be created on an Access List by assigning it the Account Assignment roles created by the Identity Center integration, assigning it a custom Teleport role that specifies a specific combination of access, or a combination of each.

For more information, see the Identity Center integration guide.

Step 6/6. Retire Okta group provisioning​

Once you are satisfied that an AWS IAM Identity Center group has been migrated to Teleport control, you can remove the corresponding push Group from the Okta Identity Center integration.

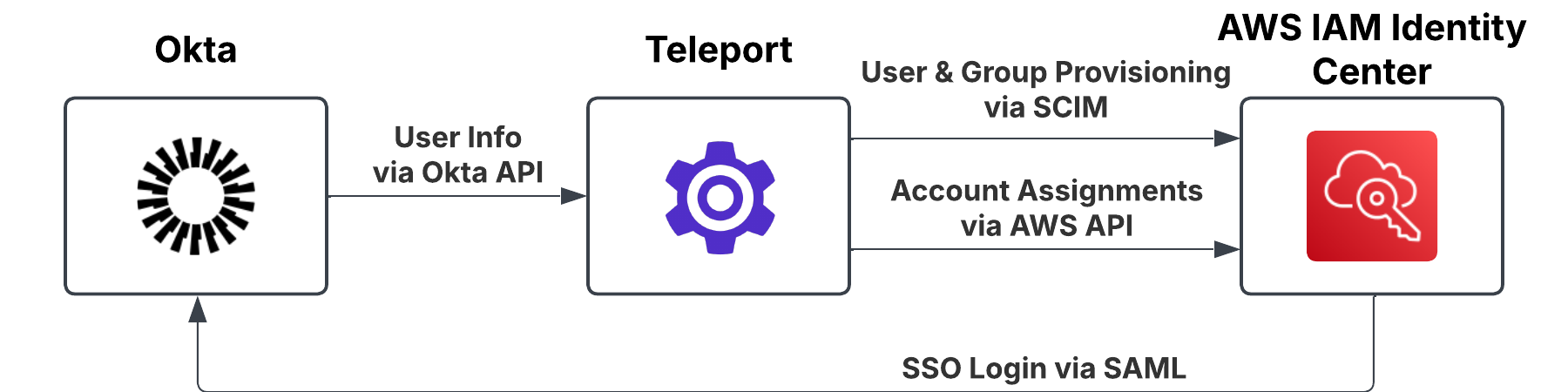

Full hand-off​

Teleport, Okta and Identity Center are now running in partial hand-off mode. It is perfectly fine to continue running Teleport this way indefinitely, but you can also use the Partial hand-off configuration as a stepping stone towards a full hand-off integration.

Moving from Partial- to Full hand-off fully transfers control of AWS users and groups to Teleport, including SSO login.

note

Teleport generally has much less information about users than Okta, so when Teleport takes over user provisioning from Okta it may strip user attributes from your Identity Center users.

Please ensure that your AWS security policies do not rely on any user attributes beyond the username and ID.

Step 1/4. Create a Teleport SAML IdP Service Provider​

To operate in Full hand-off mode Teleport needs to be the Identity Source for your AWS Identity Center instance by providing SAML authentication for your users. To do this we need to create a Teleport SAML Service Provider configured for your Identity Center instance.

Obtain the Identity Center SAML Metadata​

You can get the Identity Center SAML metadata file from AWS by following the AWS How To Connect to an External Identity Provider guide. Once you have the metadata file you will need to pause configuring AWS and switch back to Teleport.

Create the Teleport SAML Service Provider​

Create a SAML Service Provider in Teleport following the (Using Teleport as a SAML Identity Provider)[../idps/saml-guide.mdx] guide. Use the Identity Center SAML Metadata file from the previous step to provide the Identity Center metadata to Teleport.

While creating the Teleport SAML service provider, download the Teleport IdP metadata when offered. You will need this to finish configuring the Identity Source in Identity Center.

Step 2/4. Configure Identity Center to use Teleport as its Identity Source​

Once you have created the Teleport SAML Service Provider you can finish configuring the new Identity Center Identity Source. Continue following the AWS How To Connect to an External Identity Provider guide, uploading the Teleport IdP Metadata file when prompted.

Step 3/4. Switch Teleport to Full hand-off Mode​

Teleport uses the absence of a SAML service provider name in the Identity Center configuration to trigger running in Partial hand-off mode. To switch Teleport to Full hand-off mode we need to link the Identity Center integration and the SAML Service Provider created in the previous step.

This can currently only be done by manually editing the integration configuration with tctl.

warning

Manually editing the Identity Center's plugin resource using tctl is a dangerous operation. Please ensure you take a backup of the plugin resource in order to roll back if necessary.

A guided editing workflow is currently under development.

The plugin resource is a YAML document describing the Identity Center integration configuration. Running tctl edit will fetch the resource and open it your configured editor, for example:

$ tctl edit plugins/aws-identity-center

To enable Full hand-off mode, set the saml_idp_service_provider_name field in the aws_ic block to the name of the SAML Service Provider created in (Step 1)[#step-14-create-a-teleport-saml-idp-service-provider] above.

kind: plugin
version: v1
metadata:
  labels:
    teleport.dev/hosted-plugin: "true"
  name: aws-identity-center
spec:
  Settings:
    aws_ic:
      arn: arn:aws:sso:::instance/ssoins-722326ecc902a06a
      access_list_default_owners:
        - admin
      credentials:
        system:
          assumeRoleArn: arn:aws:iam::637423191929:role/idc-integration
      provisioning_spec:
        base_url: https://scim.us-east-1.amazonaws.com/f3v9c6bc2ca-b104-4571-b669-f2eba522efe8/scim/v2
      region: us-east-1

      # add or edit this to match your SAML Service Provider name
      saml_idp_service_provider_name: aws-identity-center-sso

Saving and closing the resource editor will update the Identity Center config and restart the Identity Center integration in Full Hand-Off mode.

Step 4/4. Retire Okta Identity Center integration​

Once Teleport has full control over provisioning into Identity Center, you can deactivate the Identity Center integration in Okta. Leaving the Okta Identity Center integration in place will cause Teleport and Okta to both try and control the user information

Extending the integration​

You can add or remove filters to the various filter sets with tctl edit.

warning

This currently involves manually editing the Identity Center Integration's plugin resource using tctl, which is a dangerous operation. Please ensure you take a backup of the plugin resource in order to roll back if necessary.

A guided editing workflow is currently under development.

$ tctl edit plugins/aws-identity-center

Once you save and quit the editor, tctl will replace the existing resource with your updated version. This will automatically restart the Identity Center Integration with the new filters.

kind: plugin
version: v1
metadata:
  labels:
    teleport.dev/hosted-plugin: "true"
  name: aws-identity-center
spec:
  Settings:
    aws_ic:
      arn: arn:aws:sso:::instance/ssoins-722326ecc902a06a
      access_list_default_owners:
        - admin
      credentials:
        system:
          assumeRoleArn: arn:aws:iam::637423191929:role/idc-integration
      provisioning_spec:
        base_url: https://scim.us-east-1.amazonaws.com/f3v9c6bc2ca-b104-4571-b669-f2eba522efe8/scim/v2
      region: us-east-1

      # Account import filters. An absent or empty list of filters implies
      # "manage all AWS accounts"
      aws_accounts_filters:
      - Include:
          id: "058264527036"
      - Include:
          name_regex: ^Staging-.*$

      # User provisioning filters. An absent or empty list of filters implies
      # "provision all users to AWS"
      user_sync_filters:
      - labels:
          teleport.dev/origin: okta

      # Group import filters, as per the "Group import control" section above
      group_sync_filters:
      - Include:
          name_regex: '^Group #00\d+$'

Saving the updated resource and quitting the editor will update the remote configuration and restart the Identity Center integration with the new settings.

Any change to the group_sync_filters field will also trigger a new group import cycle, which may be time consuming for Identity Center instances with lots of users and groups.

Deleting the AWS IAM Identity Center integration​

Deleting the integration automatically removes all Teleport resources it used to manage its state.

The impact of plugin deletion and general consideration is explained in the AWS IAM Identity Center guide.

Delete AWS IAM Identity Center plugin with tctl.

$ tctl plugins delete aws-identity-center
